10W LED Floodlight with PIR Motion Sensor

10W LED Floodlight with sensor
  • 10W LED Floodlight with sensor
  • 10W LED Floodlight with PIR Motion Sensor
  • 10W LED Floodlight with PIR Motion Sensor
  • 10W LED Floodlight with PIR Motion Sensor
  • 10W LED Floodlight with PIR Motion Sensor
Model No.︰WD-LDCB005
Brand Name︰WENDA
Country of Origin︰China
Unit Price︰US $ 10 / pc
Minimum Order︰200 pc
Share on:

 Total 6 Related Items
12345Next

Product Description


10W Infrared Sensor LED flood lights

10W LED Floodlight with PIR Motion Sensor 85-260V
20W COB PIR LED Floodlights

30W LED Floodlight with PIR Motion Sensor

50W LED Floodlight with PIR Motion Sensor
LED Flood light Main technical Parametres Input Voltage AC85V-265V Freqency Range 50Hz--60Hz Tatal Harmonic Distortion ≤9% power Factor >0.6 Power Efficiency >83% LED Working Voltage DC30-36V LED led quantity 1Pc LED Led consumption 10 W System Consumption 13 W LED LED luminous efficiency 70-80 lm/W lamp's Efficiency >85% Average illuminance(height)3M 11 lux (height)4M 6.5 lux (height)5M 4 lux Illuminance Area (height)3M 8*8M (height4M 10*10 (height5M 12*12 M Illuminance Uniformity >0.6 Color Temperature WW 2700k--3900k PW 3900k--6000k CW 6000k--7500k Color Rendering Index WW Ra>68 PW/CW Ra>75 Light Distribution Light Design LED Junction Temperature ≤80℃ Working Temperature -40℃~+55℃ storage Temperature -25℃~+65℃ IP Grade IP65 Working life-span 50000H Power line 0.75mm2 Yellow/Green G Color of lamp shell Black and silver Certificate CE,Rohs,IP65 lamp weight : G.W./N.W. 16.5kg/20pc ; 13.2kg/20pc lamp packing dimension 52.5*27*23.5cm

Product Image

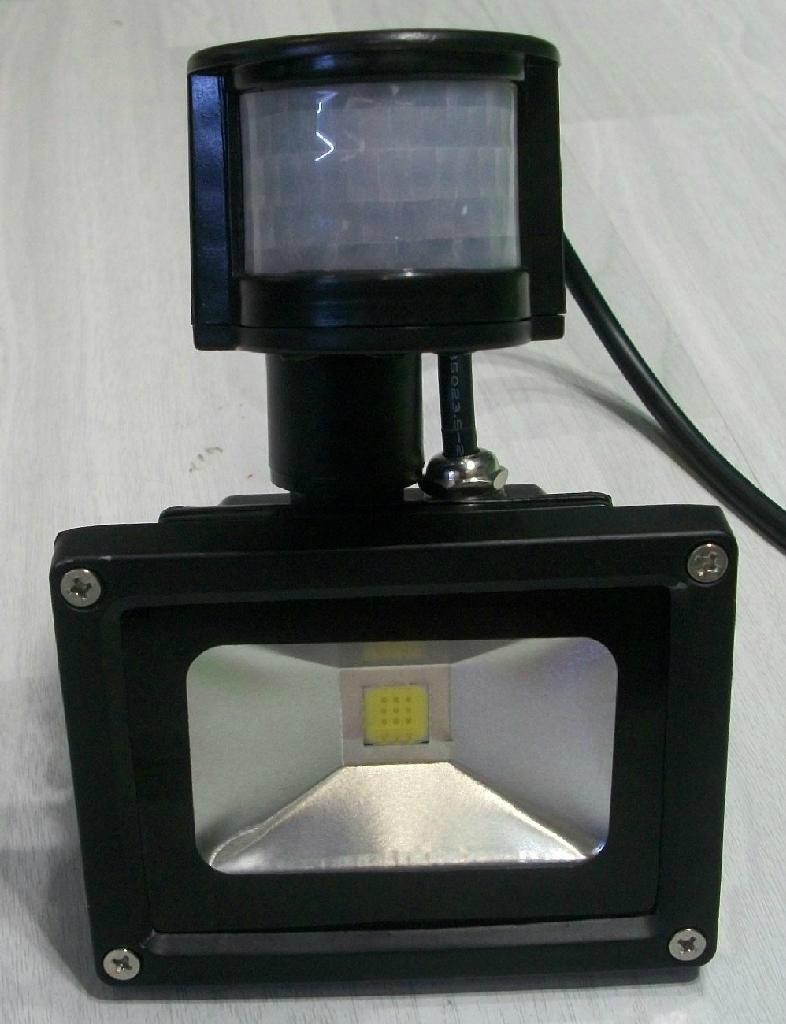

10W LED Floodlight with sensor

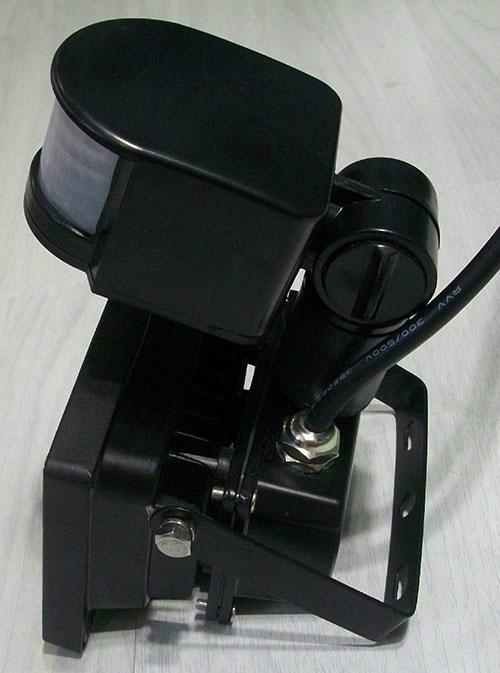

10W LED Floodlight with sensor
